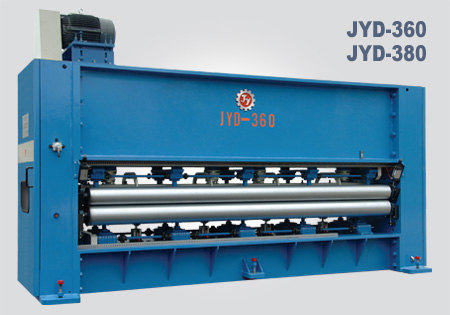

The down needling machine suitable for the needling of pre-needling products, which are too bound to be treated with high speed, its big dimensions and perfect dynamic balancing allow a high number of strokes per minute and the possibility of processing felts from 100 to 1000 gr/m² according to the present fibers.?
The needling machine is built with standard working width up to 6000 mm (more on request). For the direct taker-in motors are used and microprocessors can also be used for actuation and control.
The construction can be over-turned or simultaneous.?

Dimensional Data

Stroke of needles	25~50mm
Needles per linear meter	3500~6500ml
Max. Speed	1000 strokes per minute
Advancing speed control range	from 1 to 10 (10-max. Speed)
Working width	from 2600 to 6000mm

Installed Power

Main motor : from 18.5 to 30 Kw (25~40Hp)
according to the working width
Feeding motor : 1.1 Kw (1~2 Hp)
Discharging motor : 1.1 Kw (1~2 Hp)
